AirTAK
Display Aircraft in TAK
AirTAK is a low SWaP-C device for monitoring and analyzing aviation surveillance data via the Team Awareness Kit (TAK).

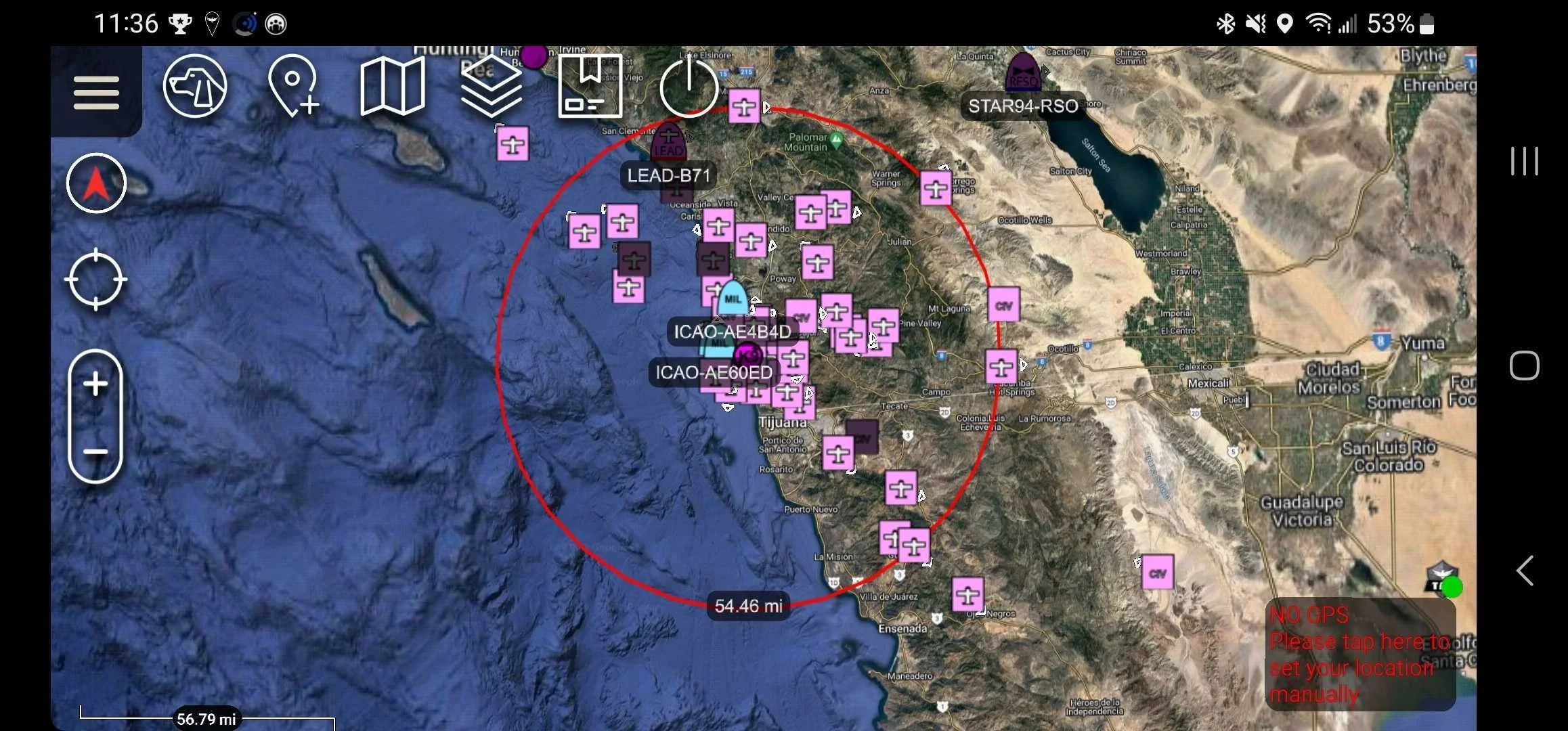

With AirTAK, TAK can display local aircraft, even in denied connectivity areas. AirTAK can also be deployed as a down-range remote ISR sensor, or at a tactical operations center (TOC) as a centralized ADS-B to TAK Server gateway.

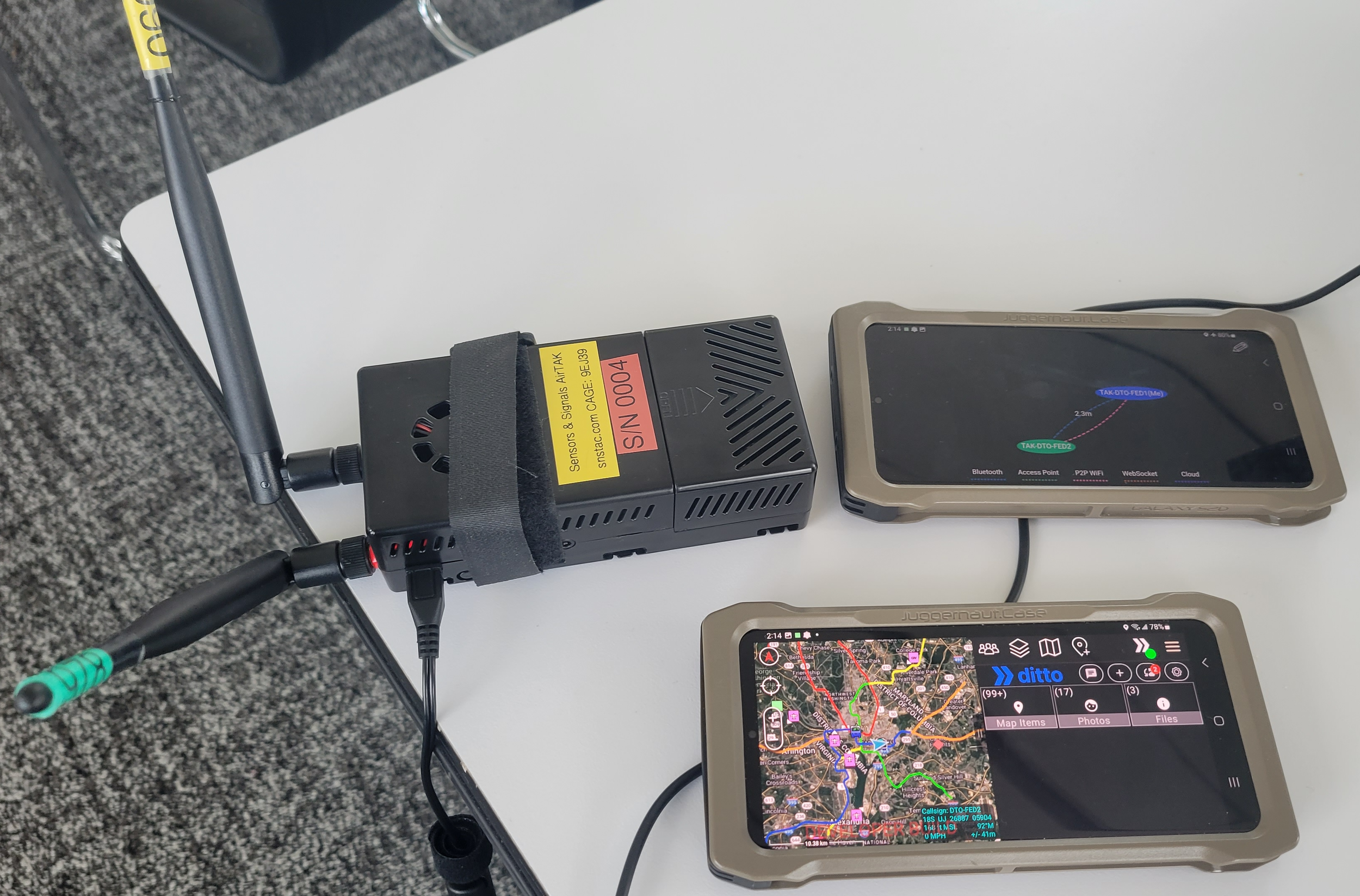

AirTAK is available as a stand-alone device that can be purchased pre-built from our store, or as an open-source firmware image that can be written to any ARM64 computer.
Specifications
Range: Up to 50 miles with included antennas.
Protocols: Automatic Dependent Surveillance–Broadcast (ADS-B), Universal Access Transceiver (UAT), Cursor on Target (CoT)
Power: 5.2 VDC, 2.5 Amp
Frequencies: 1090 MHz, 978 MHz, 2.4 GHz, 5.8 GHz
Compatible Applications: ATAK, WinTAK, iTAK, TAK Server, COPERS, TAKX, taky, Free TAK Server, Node-RED.
